Stereo Handheld Digital Audio Recorder and USB Audio Interface

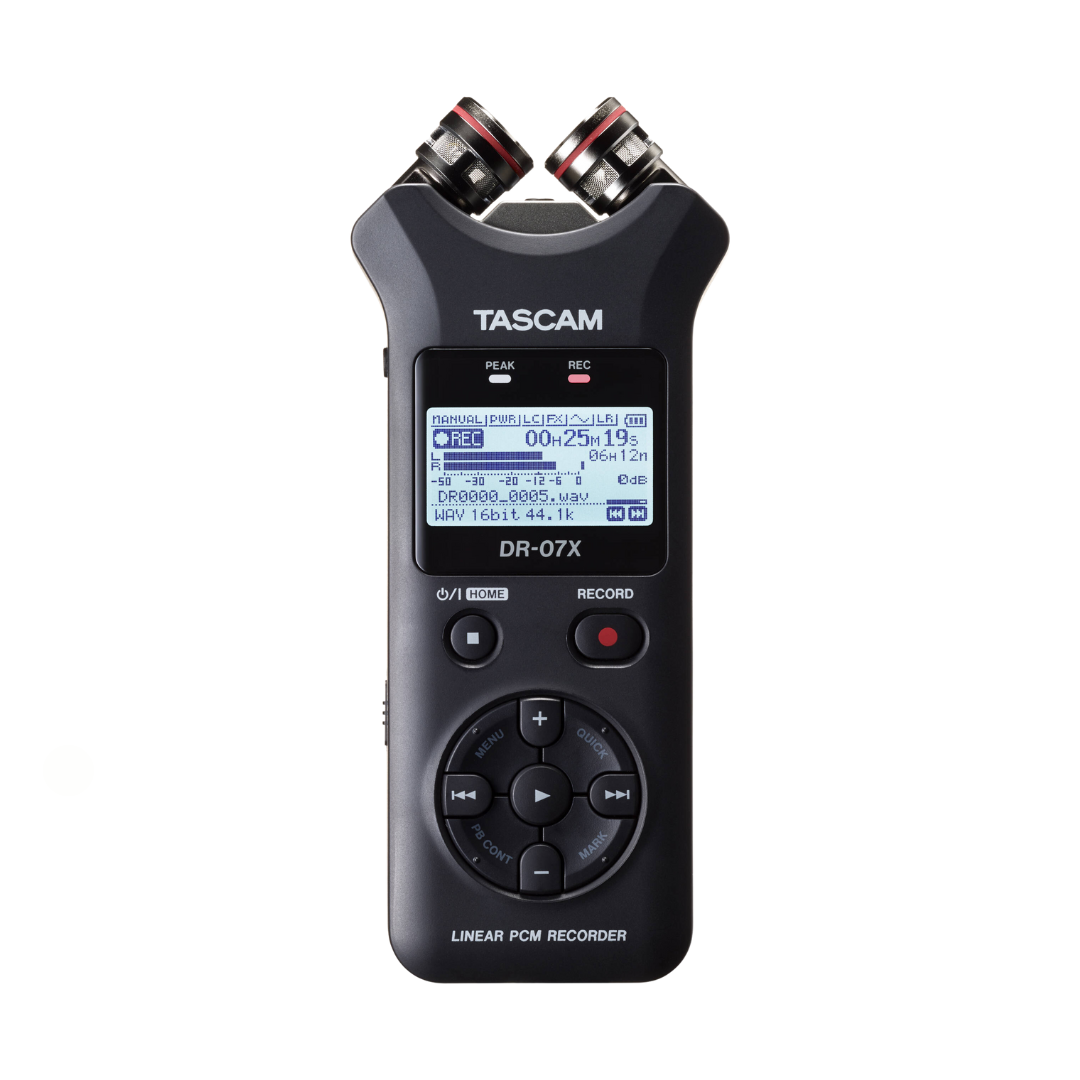

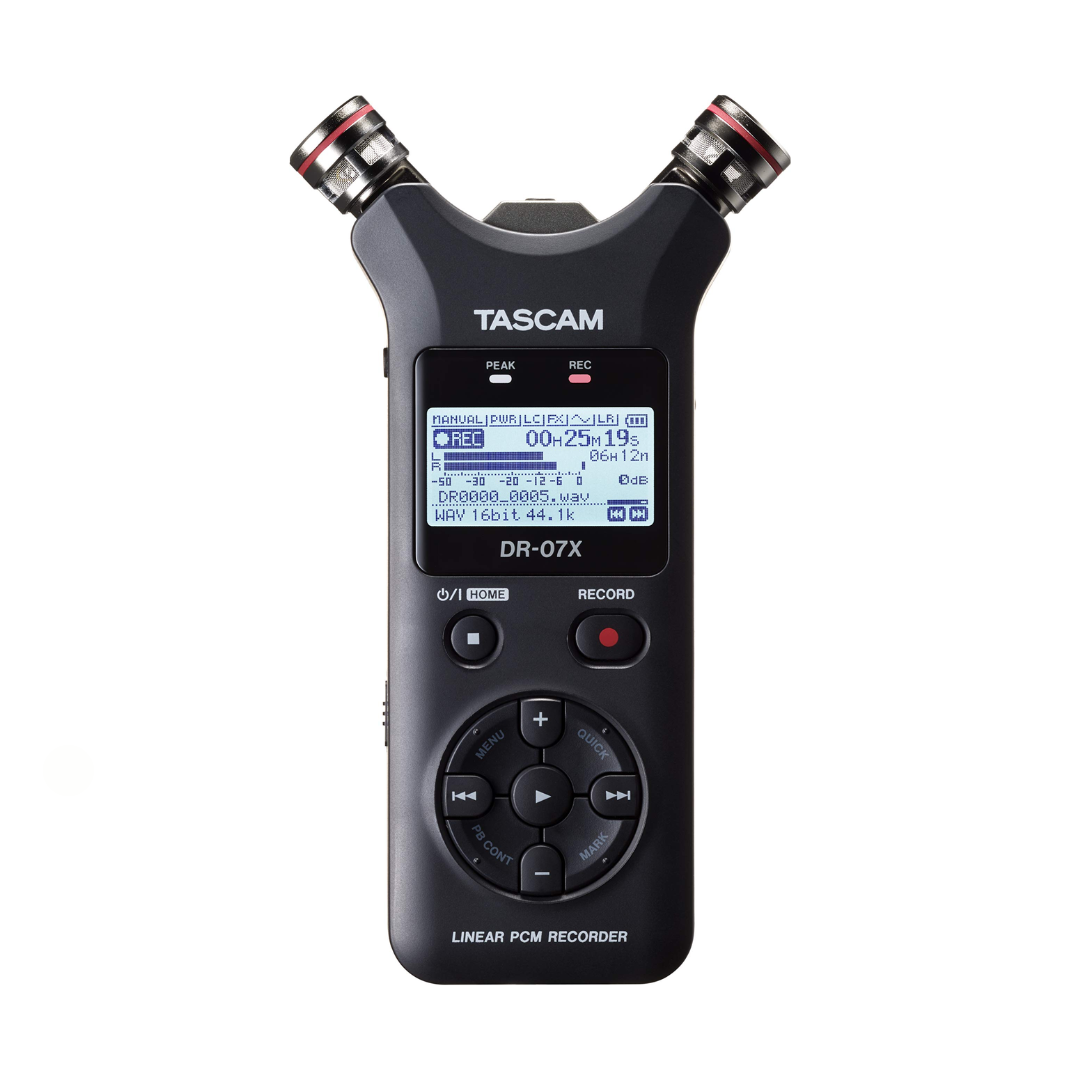

The TASCAM DR-07X is an easy to use and thoroughly compact portable audio recorder that features amazing HD audio, multiple fail-safe functions, and switchable microphone configurations for enjoyable and intuitive field recording.
- Portable recorder for dictation, voice recording, musicians, podcasting, and field recording
- Dual unidirectional condenser microphones for A/B or XY stereo recording techniques
- 2-in/2-out USB audio interface for Mac and PC
- Dictation mode and Auto Recording mode simplify certain recording tasks
- One-touch user interface with Quick Menu button for most functions
- Up to 17.5 hours of operation from 2 AA batteries
- Supports high-capacity microSDXC card media for hours of recording time
Spec description
| Recording Media | microSD card (64MB to 3GB), microSDHC card (4GB to 32GB), microSDXC card (up to 128GB) |
| File System | FAT16/32, exFAT |
| Recording File Format | |
| WAV / BWF | |
| Sampling Frequency | 44.1k / 48k / 96k Hz |
| Bit-depth | 16 / 24-bit |
| MP3 | |
| Sampling Frequency | 44.1k / 48k Hz |
| Bit-rate for recording | 32k / 64k / 96k / 128k / 192k / 256k / 320k bps |
| Playback Bit-rate | 32k to 320k bps, VBR, ID3TAG Ver. 2.4 |
| Number of Channels | 2-channel (Stereo) / 1-channel (Mono) |
| Playback speed control | 0.5 to 2.0 times (in 0.1 increments) * 44.1k/48kHz only |
| Built-in Microphone | Unidirectional, Stereo (switchable between A-B and X-Y positions) |
| MIC/EXT IN | |
| Connector | 1/8" (3.5mm) Stereo Mini jack (Unbalanced, Plug-in Power) |
| Nominal Input Level | -20dBV |
| Maximum Input Level | -4dBV |
| Input Impedance | 18kΩ or more (PLUG IN PWR: OFF) 2kΩ or more (PLUG IN PWR: ON) |
| PHONES/LINE OUT | |
| Connector | 1/8" (3.5mm) Stereo Mini jack (Unbalanced) |
| for LINE connection | |
| Nominal Output Level | -14dBV (10kΩ load) |
| Maximum Output Level | +2dBV (10kΩ load) |
| Output Impedance | 12Ω |
| for Headphones connection | |
| Maximum Output Power | 20mW + 20mW (32Ω load) |
| USB | |
| Connector | USB Micro B-type |
| Format | USB2.0 HIGH-SPEED |
| Built-in Speaker | 0.3W, Mono |
| Low-cut Filter | 40 / 80 / 120Hz |
| Chromatic Tuner | C1 to B6, A4 = 435Hz to 445Hz (in 1Hz increments) |
| Effector | 6 presets (Hall 1, Hall 2, Room, Studio, Plate 1, Plate 2) |
| Tripod attachment screw-hole | 1/4" Tripod attachment screw-hole |
| Power | 2 AA Batteries, USB bus power, AC 100 to 240V (optional AC Adapter) |
| Power Consumption | 1.7 W (Max) |
|
Battery Operation Time (Recording) |
|
| Alkaline (EVOLTA) | approx. 17.5 hours (2ch WAV, 44.1kHz, 16-bit, using Built-in Microphone, JEITA) |
| Ni-MH (eneloop) | approx. 15.5 hours (2ch WAV, 44.1kHz, 16-bit, using Built-in Microphone, JEITA) |
| Dimensions (W×H×D) | 2.67" × 6.22" × 1.02" / 68 × 158 × 26 mm |
| Weight | 4.5 oz. / 127 g |
Audio Performance
| Frequency Response | |
| Fs 44.1kHz | 20Hz to 20kHz, +0/-1dB (EXT IN to LINE OUT, JEITA) |
| Fs 48kHz | 20Hz to 22kHz, +0/-1dB (EXT IN to LINE OUT, JEITA) |
| Fs 96kHz | 20Hz to 40kHz, +0/-1.5dB (EXT IN to LINE OUT, JEITA) |
| Total Harmonic Distortion | 0.01% or less (Fs 44.1k/48k/96kHz, EXT I Not LINE OUT, JEITA) |
| Signal-to-Noise Ratio | 94 dB or higher (Fs 44.1k/48k/96kHz, EXT I Not LINE OUT, JEITA) |
