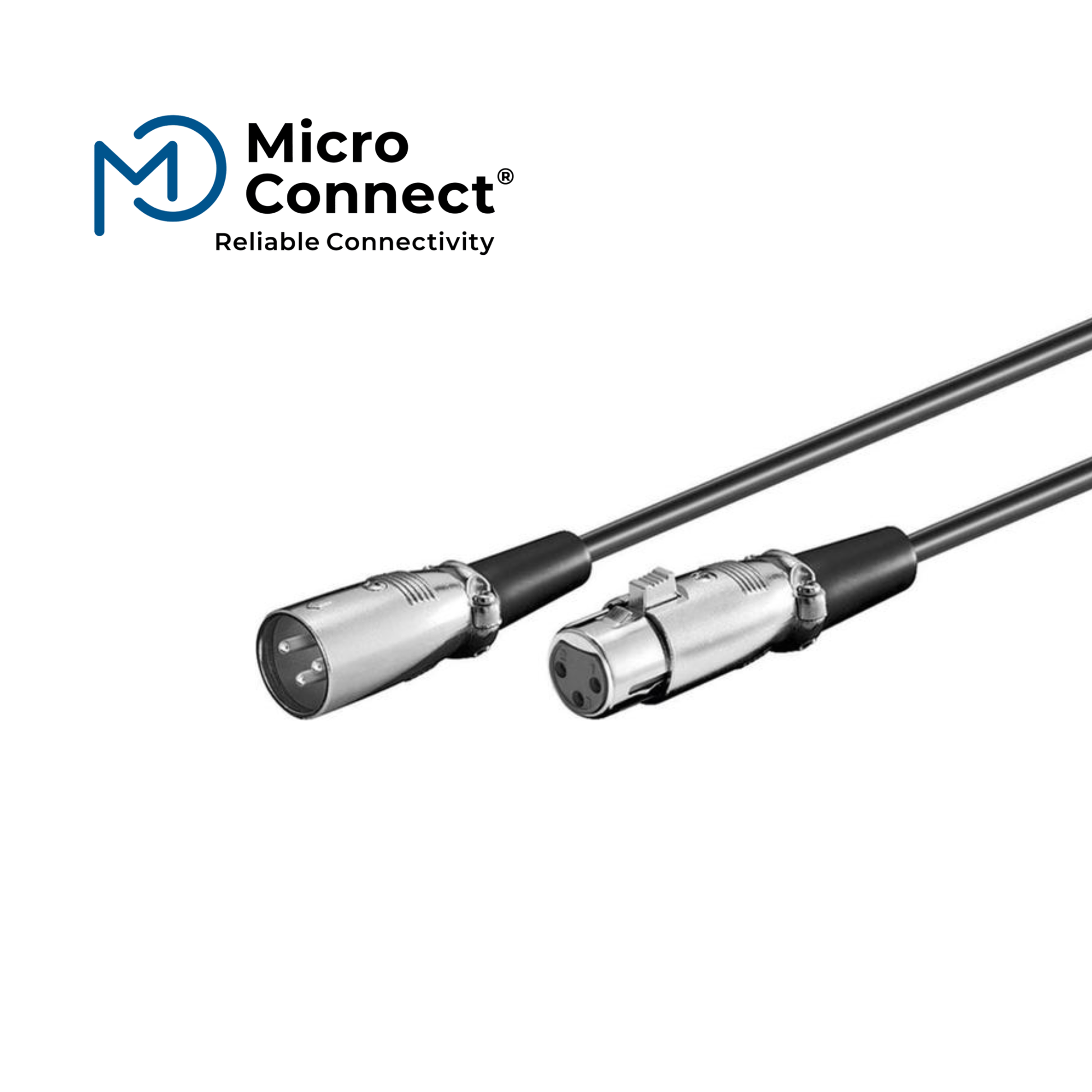

Microconnect XLR male to female

Connectors

• Type: 3-pin XLR (balanced)
• Configuration: Male (XLR3M) to Female (XLR3F)
• Standard pinout:
  • Pin 1: Ground / shield
  • Pin 2: Hot (+)
  • Pin 3: Cold (−)

Cable construction

• Conductor: Copper
• Shielding: Yes (for noise/interference rejection)
• Jacket material: PVC
• Outer diameter: ~6 mm
• Color: Black

Electrical characteristics

• Signal type: Balanced analog audio
• Designed for low noise and high interference immunity
• Suitable for microphone- and line-level signals

Mechanical

• Connector style: Straight
• Strain relief: Integrated in connectors
• Typical lengths: 0.5 m up to 20 m (model-dependent)

Use cases

• Microphones to mixers/audio interfaces
• Mixers to speakers or PA systems
• General professional audio interconnects
