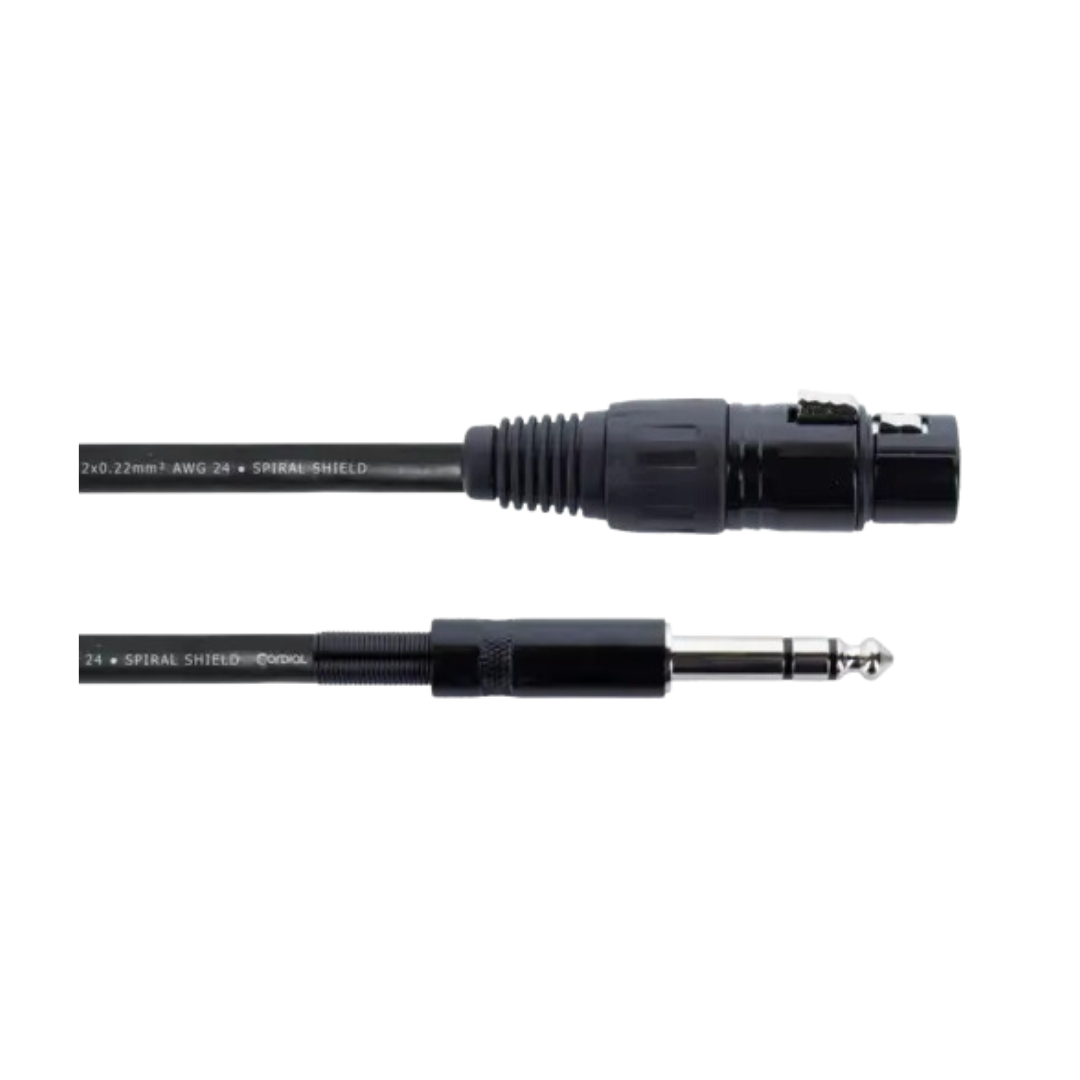

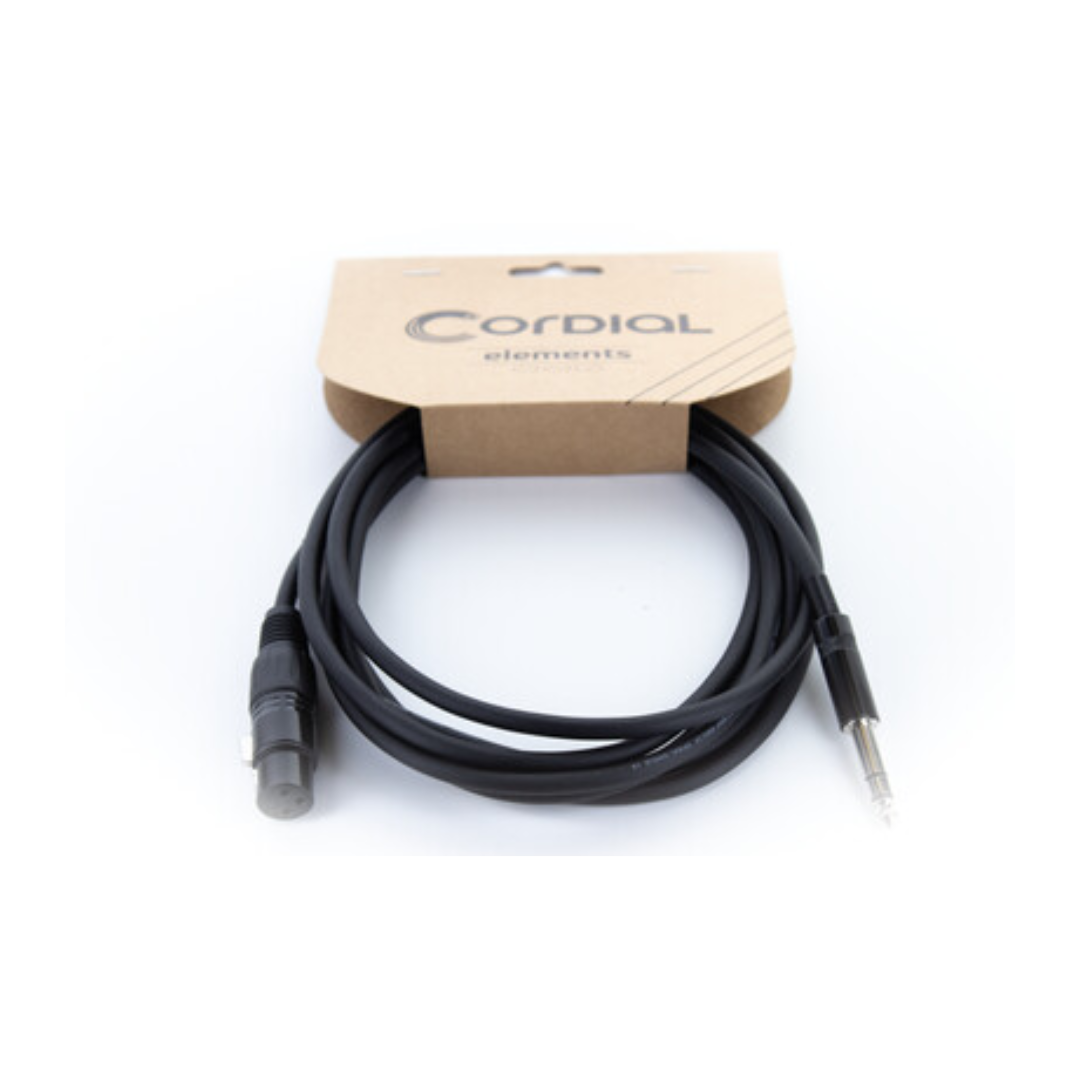

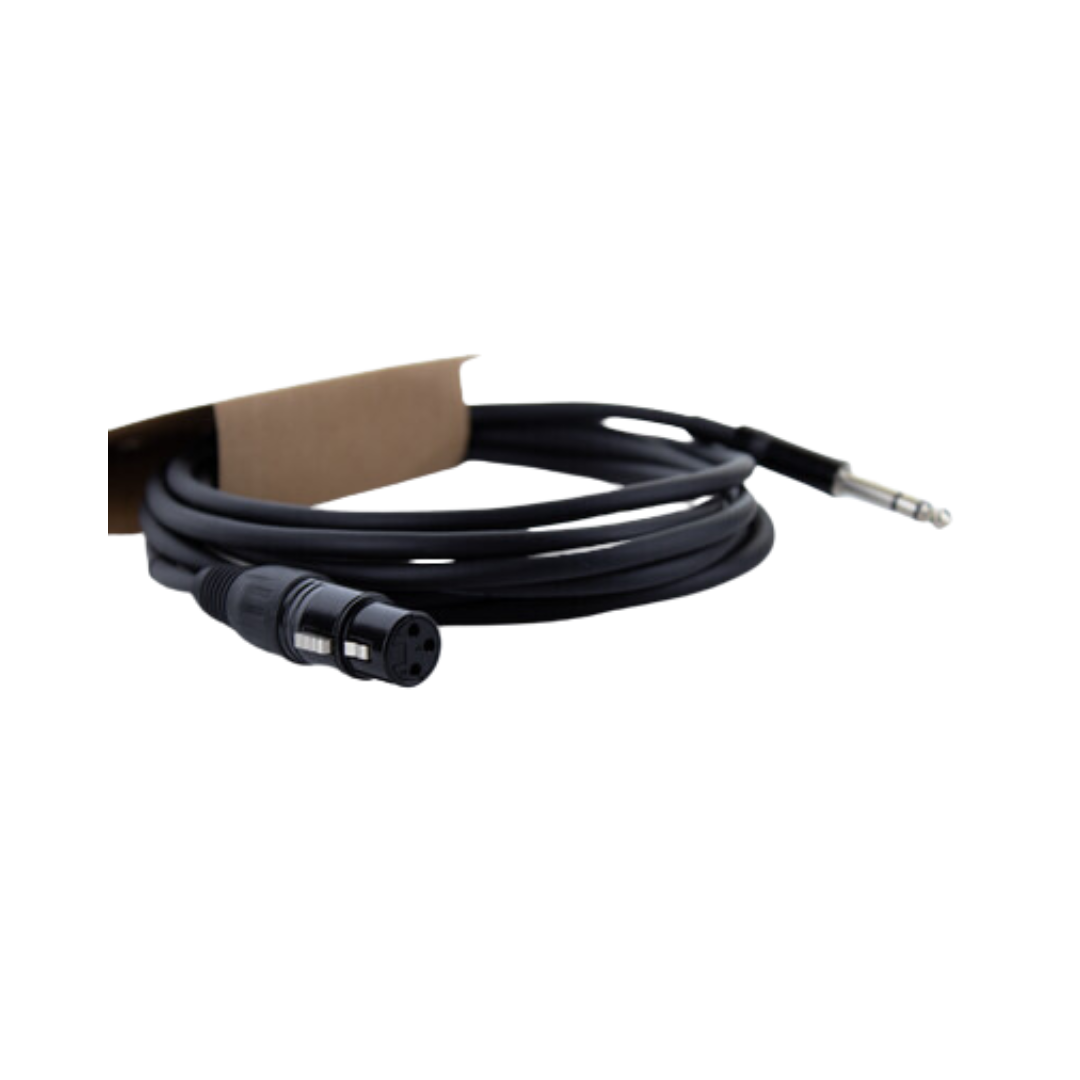

Cordial EM FV- XLR (F) to stereo Jack cable
Cordial EM FV- XLR (F) to stereo Jack cable
Out of stock
Couldn't load pickup availability
The EM FV is used to connect a microphone directly to a stereo input of, for example, a mixer or audio workstation. The robust XLR plug with nickel-plated contacts and molded bend protection combined with the metal stereo jack and a durable PVC jacket withstand even the toughest conditions. The transmission is balanced.
The conductor area of 2x 0.22 mm² and shielding of twisted copper strands (spiral shielding, 95% coverage) ensure crystal-clear and unaltered signal transmission. The single-strand construction (28 x 0.10 mm) and the robust but flexible PVC sheathing compound ensure a particularly flexible XLR cable that is easy to wind.
Product Information:
| cable | elements MIC 1 | |
| Jacket | PVC | |
| cable assign | FV | |
| connector brand | - | |
| plugs | 1x XLR female 3-pole 1x 1/4" Plug stereo |
Technical specs:
| Conductor area | 0.22 mm² |
| AWG | AWG 24 |
| Composition of conductor | 28 x 0.10 mm |
| Material | bare copper |
| Conductor resistance | 80 Ohm/km |
| Shielding | Spiral wound copper wire (spiral shield, 95% coverage) |
| Capacity cond.-cond. (pF/m) | 58 pF/m |
| category | Balanced Connection |
| diameter | 6.0 mm |
| Conductor isolation | PE |
